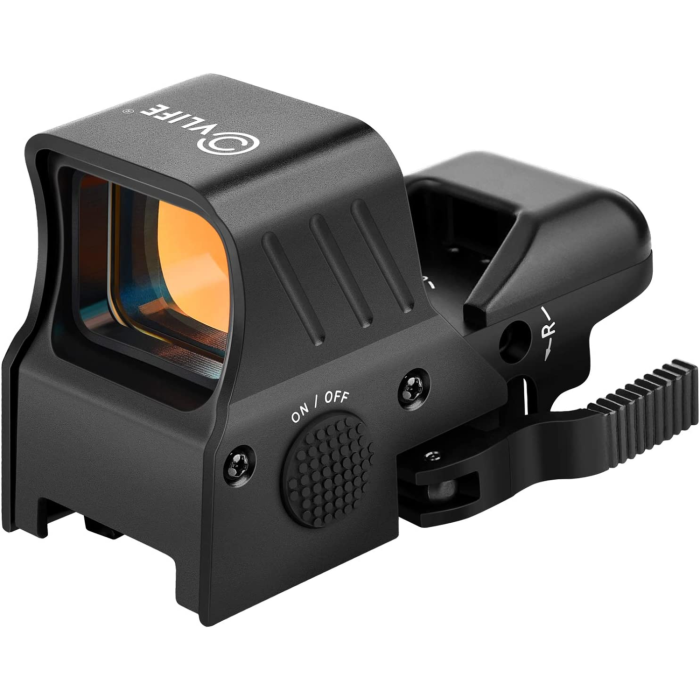

CVLIFE 1x22x33 Red Dot Sight 4 Reticles Reflex Sight with Quick Detach Mount for 20mm Picatinny Rail
Eligible
SKU
EVTRD-B08HJCBDXM
• Illuminated Red Dot Sight comes with 4 patterns to meet various needs.
•With 8 Brightness Levels Settings, the reflex sight can be adjusted as you need
•The 33mm reflex lens with tubeless design is for a wide view. The reflex sight is very easy to zero and holds zero for longer periods of time, providing a more accuracy.
Reticles Selector
Windage Adjustment
Elevation Adjustment
Locking Screw for Elev./Wind. Adj.
• Illuminated Red Dot Sight comes with 4 patterns to meet various needs.
•With 8 Brightness Levels Settings, the reflex sight can be adjusted as you need
•The 33mm reflex lens with tubeless design is for a wide view. The reflex sight is very easy to zero and holds zero for longer periods of time, providing a more accuracy.
Reticles Selector
Windage Adjustment
Elevation Adjustment
Locking Screw for Elev./Wind. Adj. [read more]
4 Selectable Reticles: Illuminated Red Dot Sight comes with 4 patterns to meet various needs.
8 Levels of Brightness: With 8 Brightness Levels Settings, the reflex sight can be adjusted as you need. The push-button design makes brightness adjustment easier. Press the button for 3 second to turn it off.
Get Accuracy: The 33mm reflex lens with tubeless design is for a wide view. The reflex sight is very easy to zero and holds zero for longer periods of time, providing a more accuracy.
Easy to Install and Adjust: With quick detach mount, it’s so easy to mount this reticle sight on a picatinny rail or take it off without using a wrench, and easy to adjust up down left and right just use included key.
Durability: Waterproof and shockproof, aluminum sturdy construction and mounts promise CVLIFE red dot sight will stand up to extreme conditions.
Specifications:
Obj. Aperture: 22mmx33mm
Magnification: 1x
Field of View: [email protected]
Eye Relief: Unlimited
Finish: Black Matte
Length: 91mm/3.58 inch
Weight: 7.72oz/219g
How to Zero ?
Select the reticle you desire by turning the reticle selector knob and set your intensity at the best position
With the sight mounted, rest the gun on a solid support and aim at a target 50 to 100 yards away.
Test shots should be done in the same conditions to achieve maximum accuracy for adjustment, for which the use of firm rest for firing and same type cartridge is recommendable.
Note: Each click adjustment moves the point of impact by 1 MOA (approximately 1"e; at 100 vbs, 1/2"e; at 50 yards.)
Reticles Selector
Provide 4 different pattern reticles to meet your need.
Windage Adjustment
Adjust the point of impact to the right, turn the screw clockwise
Elevation Adjustment
Adjust the point of impact to up, turn the screw counter clockwise.
Locking Screw for Elev./Wind. Adj.
Before/ after Adjusting the Elev./Wind., turn the screw clockwise to lock.
How to use the adjustable quick detach weaver mount better?
Quick Detach Mount could fit 20 mm Picatinny or Weaver Rail, making it easy to install.
When mounting is too loose, the sight will slide back and forth, you need to
Take the sight off the rail.
Close up the quick detach mount.
Use the wrench (included) to twist the nut which controls the tightness of Quick Detach Mount.
Turn the nut clockwise to tight the base.
When mounting is too tight, the quick detach mount will not close up on the rail, you need to
Use the wrench (included) to twist the nut which controls the tightness of Quick Detach Mount.
Turn the nut counterclockwise to loose the base to the level it fit.
NOTICE
When you encounter that the sights are blurry or it shows double images, you can turn the red dot on and let it stay for 3-5 minutes. Then it will show clearly. (It just need 3-5 minutes to preheat when you first time to use it.)
When you encounter that the sights can not turn on, please make sure the battery is installed correctly and not turned over in the battery compartment, or change the batteries.
When you encounter that the mounting is loosing, you can adjust the mount to be tight by a Allen wrench according to the above guideline.
When you encounter that the Elev./Wind. can not be adjusted, please loose the Locking Screw, then adjust the Elev./Wind..
8 Levels of Brightness: With 8 Brightness Levels Settings, the reflex sight can be adjusted as you need. The push-button design makes brightness adjustment easier. Press the button for 3 second to turn it off.
Get Accuracy: The 33mm reflex lens with tubeless design is for a wide view. The reflex sight is very easy to zero and holds zero for longer periods of time, providing a more accuracy.
Easy to Install and Adjust: With quick detach mount, it’s so easy to mount this reticle sight on a picatinny rail or take it off without using a wrench, and easy to adjust up down left and right just use included key.
Durability: Waterproof and shockproof, aluminum sturdy construction and mounts promise CVLIFE red dot sight will stand up to extreme conditions.
Specifications:
Obj. Aperture: 22mmx33mm
Magnification: 1x
Field of View: [email protected]
Eye Relief: Unlimited
Finish: Black Matte
Length: 91mm/3.58 inch
Weight: 7.72oz/219g
How to Zero ?
Select the reticle you desire by turning the reticle selector knob and set your intensity at the best position
With the sight mounted, rest the gun on a solid support and aim at a target 50 to 100 yards away.
Test shots should be done in the same conditions to achieve maximum accuracy for adjustment, for which the use of firm rest for firing and same type cartridge is recommendable.
Note: Each click adjustment moves the point of impact by 1 MOA (approximately 1"e; at 100 vbs, 1/2"e; at 50 yards.)
Reticles Selector
Provide 4 different pattern reticles to meet your need.
Windage Adjustment
Adjust the point of impact to the right, turn the screw clockwise
Elevation Adjustment
Adjust the point of impact to up, turn the screw counter clockwise.
Locking Screw for Elev./Wind. Adj.
Before/ after Adjusting the Elev./Wind., turn the screw clockwise to lock.
How to use the adjustable quick detach weaver mount better?
Quick Detach Mount could fit 20 mm Picatinny or Weaver Rail, making it easy to install.
When mounting is too loose, the sight will slide back and forth, you need to
Take the sight off the rail.
Close up the quick detach mount.
Use the wrench (included) to twist the nut which controls the tightness of Quick Detach Mount.
Turn the nut clockwise to tight the base.
When mounting is too tight, the quick detach mount will not close up on the rail, you need to
Use the wrench (included) to twist the nut which controls the tightness of Quick Detach Mount.
Turn the nut counterclockwise to loose the base to the level it fit.
NOTICE
When you encounter that the sights are blurry or it shows double images, you can turn the red dot on and let it stay for 3-5 minutes. Then it will show clearly. (It just need 3-5 minutes to preheat when you first time to use it.)
When you encounter that the sights can not turn on, please make sure the battery is installed correctly and not turned over in the battery compartment, or change the batteries.
When you encounter that the mounting is loosing, you can adjust the mount to be tight by a Allen wrench according to the above guideline.
When you encounter that the Elev./Wind. can not be adjusted, please loose the Locking Screw, then adjust the Elev./Wind..
| Product Name | CVLIFE 1x22x33 Red Dot Sight 4 Reticles Reflex Sight with Quick Detach Mount for 20mm Picatinny Rail |
|---|---|
| Caliber Eligible | Yes |
| Shop by Brand | CVLIFE |
