ROVIR MK2 640 Vehicle Mounted Thermal PTZ System

Sold and Shipped by ROVIR


caliber-nation-icon

save today! Unlock discounts, earn points, FREE shipping, and more with Caliber Nation savings. Start 30-day free trial

Out of stock

Mount interface - 4 super magnets/ 4 5/16-24 UNF

Simultaneous Pan and Tilt/Bi-directional control

Picture in picture

Stadiametric Rangefinder

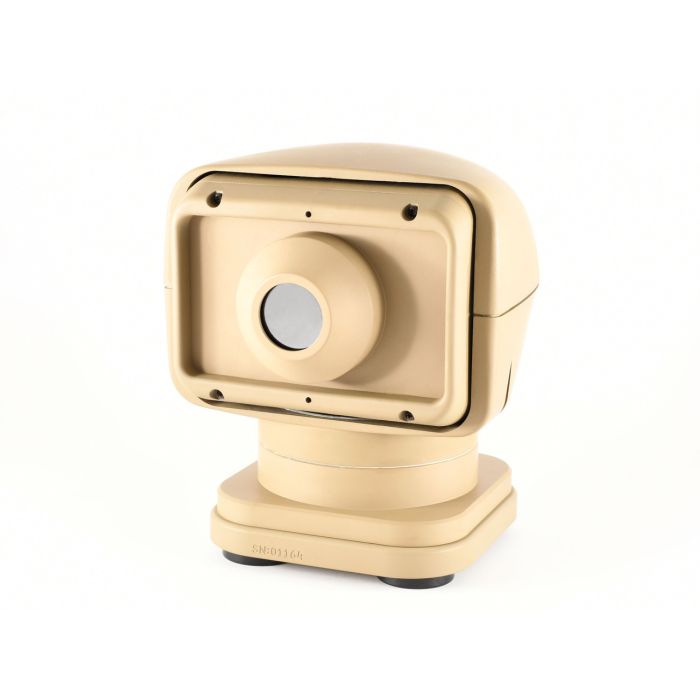

ROVIR MK2 640 Vehicle Mounted Thermal PTZ System

The ROVIR Mk2 thermal PTZ camera system is designed to enhance scanning capabilities while on-board a vehicle.


The ROVIR 640 25mm is over-built to maintain performance through years of use and exposure to the elements.


Objective Focal Length: 25mm

Sensor Resolution: 640x480

Objective F#: F1.0

Device Technology: Thermal Imaging

Detection Range: 1375 yards


THUMBSTICK


The ROVIR uses an intuitive thumb-stick controller to control panning, tilting, and video image enhancements. The rest of the system is controlled by 2 buttons located on the thumb-stick controller.


OVERBUILT FOR YEARS OF USE

The foundation of the ROVIR is an aircraft-grade aluminum chassis with countersunk pocketed super-magnets to attach to almost any vehicle. For vehicles or boats with a fiberglass or plastic body the ROViR has 4 threaded holes in the chassis that can be used to attach custom mounting solutions like a RAM Mount. The ROVIR Mk2 is coated in Cerakote Elite series H-235 Coyote Tan for additional protection.



DIRECTIONAL INDICATOR


ROVIR pan-tilt systems feature a directional indicator so you know which direction the camera head is position at all times.



MATRIX III IMAGE PROCESSING


At the core of the ROVIR is an advanced InfiRay MICRO II core. The ROVIR Mk2 features Automatic Gain Control(AGC) and Manual Gain Control(MGC), Digital Detail Enhancement(DDE) and InfiRay's Proprietary MATRIX III image processing algorithm for unmatched thermal image quality.


Mount interface - 4 super magnets/ 4 5/16-24 UNF

Simultaneous Pan and Tilt/Bi-directional control

Picture in picture

Stadiametric Rangefinder

Magnetic and Permanent Vehicle Mount capability

IP66

360 Degree Unlimited Camera Head Rotation

Digital Video Signal




Display Specifications:


Screen Size: Diagonal 7" (16:9)

Physical Resolution: 1024 (H) x 600 (V) WXGA

Supported Resolution: 640 x 480 ~ 1920 x 1080

Dot Resolution: 3072 x 600 = 1,843,200 (dots)

Brightness: 1000 cd/m²

Contrast Ratio: 700:1

Viewing Angle: 150° Horizontal, 145° Vertical

Response Time (Tr/Tf): 10/15ms (Typ.)

Touch Screen Interface: USB port

Operating Voltage Range: DC 10V ~ 35V

Power Supply: DC 12V

Power Consumption: ≤ 20W

Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)

Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)

MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation

Dimension (mm): 205.2W x 139.5H x 28.7D

Weight (lb): 2.64

  • Product Name: ROVIR MK2 640 Vehicle Mounted Thermal PTZ System
  • Shop by Brand: ROVIR
  • Description:

    The ROVIR Mk2 thermal PTZ camera system is designed to enhance scanning capabilities while on-board a vehicle.


    The ROVIR 640 25mm is over-built to maintain performance through years of use and exposure to the elements.


    Objective Focal Length: 25mm

    Sensor Resolution: 640x480

    Objective F#: F1.0

    Device Technology: Thermal Imaging

    Detection Range: 1375 yards


    THUMBSTICK


    The ROVIR uses an intuitive thumb-stick controller to control panning, tilting, and video image enhancements. The rest of the system is controlled by 2 buttons located on the thumb-stick controller.


    OVERBUILT FOR YEARS OF USE

    The foundation of the ROVIR is an aircraft-grade aluminum chassis with countersunk pocketed super-magnets to attach to almost any vehicle. For vehicles or boats with a fiberglass or plastic body the ROViR has 4 threaded holes in the chassis that can be used to attach custom mounting solutions like a RAM Mount. The ROVIR Mk2 is coated in Cerakote Elite series H-235 Coyote Tan for additional protection.



    DIRECTIONAL INDICATOR


    ROVIR pan-tilt systems feature a directional indicator so you know which direction the camera head is position at all times.



    MATRIX III IMAGE PROCESSING


    At the core of the ROVIR is an advanced InfiRay MICRO II core. The ROVIR Mk2 features Automatic Gain Control(AGC) and Manual Gain Control(MGC), Digital Detail Enhancement(DDE) and InfiRay's Proprietary MATRIX III image processing algorithm for unmatched thermal image quality.


    Mount interface - 4 super magnets/ 4 5/16-24 UNF

    Simultaneous Pan and Tilt/Bi-directional control

    Picture in picture

    Stadiametric Rangefinder

    Magnetic and Permanent Vehicle Mount capability

    IP66

    360 Degree Unlimited Camera Head Rotation

    Digital Video Signal




    Display Specifications:


    Screen Size: Diagonal 7" (16:9)

    Physical Resolution: 1024 (H) x 600 (V) WXGA

    Supported Resolution: 640 x 480 ~ 1920 x 1080

    Dot Resolution: 3072 x 600 = 1,843,200 (dots)

    Brightness: 1000 cd/m²

    Contrast Ratio: 700:1

    Viewing Angle: 150° Horizontal, 145° Vertical

    Response Time (Tr/Tf): 10/15ms (Typ.)

    Touch Screen Interface: USB port

    Operating Voltage Range: DC 10V ~ 35V

    Power Supply: DC 12V

    Power Consumption: ≤ 20W

    Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)

    Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)

    MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation

    Dimension (mm): 205.2W x 139.5H x 28.7D

    Weight (lb): 2.64
