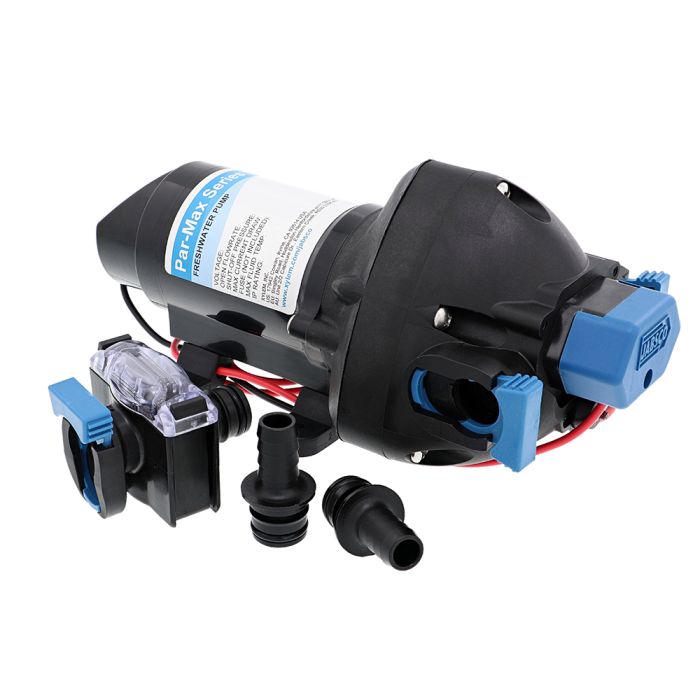

Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 40 PSI

Sold and Shipped by Everest Marketplace


caliber-nation-icon

save today! Unlock discounts, earn points, FREE shipping, and more with Caliber Nation savings. Start 30-day free trial

In stock

FREE shipping

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life



• Co-molded diaphragm technology for long life and durability

• Can run dry without damage

• Self-priming allows for installation versatility


Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 40 PSI

Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 40 PSI

HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

Features:

  • Co-molded diaphragm technology for long life and durability
  • HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
  • Efficient and quiet operation
  • Integrated, sealed pressure switch for on-demand operation
  • Self-priming allows for installation versatility
  • Can run dry without damage
  • Quick connect ports for ease of installation, servicing, and maintenance
  • Vibration dampening mounting feet
  • Equipped with integrated bypass module to reduce cycling and provide smoother flow

Specifications:

  • Motor design: Brushed, permanent magnet TENV
  • Pumphead upper housing material: Glass fiber reinforced polypropylene
  • Diaphragm: Co-molded TPV
  • Check valves: EPDM
  • Max inlet pressure: 30 PSI (2.1 Bar)
  • Fluid temperature range: 32°F – 140°F (0°C – 60°C)
  • Dry self-priming capability: 7ft min (2.13m/min)
  • Certifications: CE, ISO8846, RCM
  • Ingress Protection: IPX6

WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.

  • Product Name: Jabsco Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 40 PSI
  • Shop by Brand: Jabsco
  • UPC Number: 671880841825
  • Description:

    Par-Max 3 Water Pressure Pump - 24V - 3 GPM - 40 PSI

    HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.

    Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.

    Features:

    • Co-molded diaphragm technology for long life and durability
    • HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
    • Efficient and quiet operation
    • Integrated, sealed pressure switch for on-demand operation
    • Self-priming allows for installation versatility
    • Can run dry without damage
    • Quick connect ports for ease of installation, servicing, and maintenance
    • Vibration dampening mounting feet
    • Equipped with integrated bypass module to reduce cycling and provide smoother flow

    Specifications:

    • Motor design: Brushed, permanent magnet TENV
    • Pumphead upper housing material: Glass fiber reinforced polypropylene
    • Diaphragm: Co-molded TPV
    • Check valves: EPDM
    • Max inlet pressure: 30 PSI (2.1 Bar)
    • Fluid temperature range: 32°F – 140°F (0°C – 60°C)
    • Dry self-priming capability: 7ft min (2.13m/min)
    • Certifications: CE, ISO8846, RCM
    • Ingress Protection: IPX6

    WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
