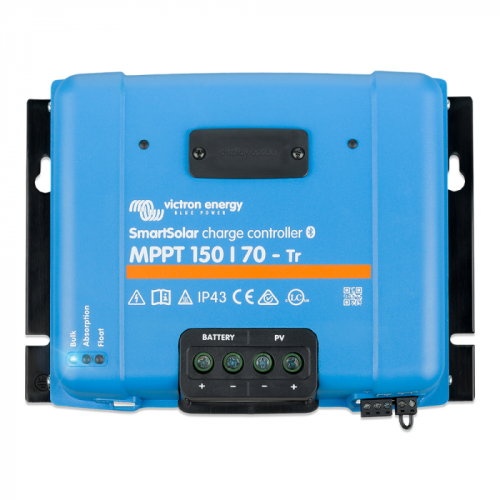

Victron SmartSolar MPPT 150/70 - TR Solar Charge Controller

In stock
Do you want to be a product ambassador?

Victron SmartSolar MPPT 150/70 - TR Solar Charge Controller

SKU
CWR-87638
SmartSolar MPPT 150/70 - TR Solar Charge ControllerFeatures:Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers. Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of [read more]
In stock
$693.00 Ships Quickly! Order Today
139 views within the last 24 hours

Secure Transaction
Return Policy: Eligible for Everest's EZ Return, Replace, Refund Program.
Save big with a Caliber Membership! You'll also enjoy fast, FREE delivery, award winning movies & TV shows, discounts on travel & food, and more!

SmartSolar MPPT 150/70 - TR Solar Charge Controller

Features:

  • Bluetooth Smart built-in The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
  • Ultra-fast Maximum Power Point Tracking (MPPT) Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
  • Advanced Maximum Power Point Detection in case of partial shading conditions If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
  • Outstanding conversion efficiency No cooling fan. Maximum efficiency exceeds 98%.
  • Flexible charge algorithm Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
  • Extensive electronic protection Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.
  • Internal temperature sensor Compensates absorption and float charge voltage for temperature.
  • Optional external battery voltage and temperature sensing via Bluetooth A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
  • VE.Direct For a wired data connection to a Color Control GX, other GX products, PC or other devices
  • Remote on-off To connect for example to a VE.BUS BMS.
  • Programmable relay Can be programmed to trip on an alarm, or other events
Please contact your dealer for any returns, repairs or support issues related to this product.
More Information
Product Name Victron SmartSolar MPPT 150/70 - TR Solar Charge Controller
Shop by Brand Victron Energy
UPC Number 8719076051404
