Wichard HR D Shackle - Diameter 15/64"
SKU
CWR-94414
HR D Shackle - Diameter 15/64"Features:Forged D shackle in HR stainless steel grade (17,4 PH)Outstanding working and breaking loadAn HR shackle can be up to 60% more resistant than a shackle [read more]

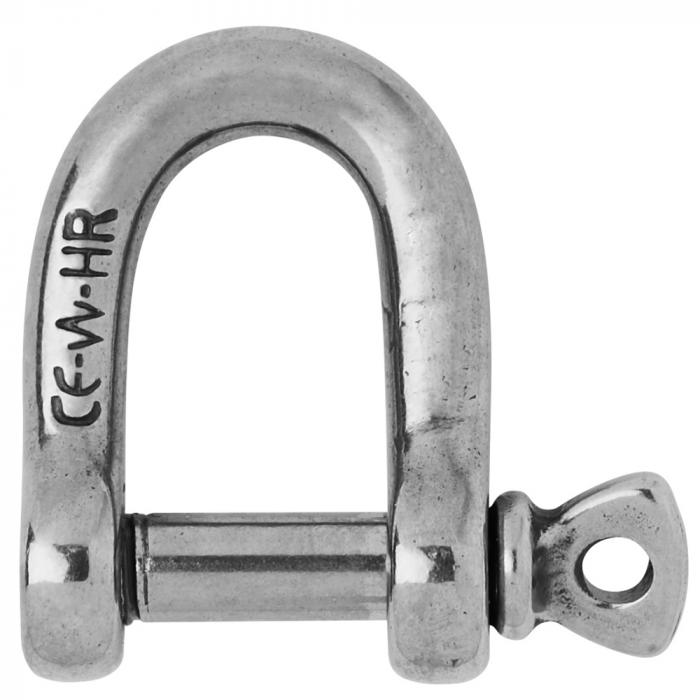

HR D Shackle - Diameter 15/64"
Features:
- Forged D shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head
- Do not use it for mooring applications
Specifications:
- Materials HR 17.4 PH stainless steel grade
- Working load (lb) 2290
- WLL (lb) 1010
- Breaking load (lb) 5070
- Weight (lb) 0.053
- A (inch) 25/32"
- B (inch) 15/32"
- C (inch) 15/64"
- D (inch) 5/8"
- D diameter (inch) 15/64"
- E (inch) 9/32"
- F (inch) 1 13/16"
- G (inch) 1 13/16"
| Product Name | Wichard HR D Shackle - Diameter 15/64" |
|---|---|
| Shop by Brand | Wichard Marine |
